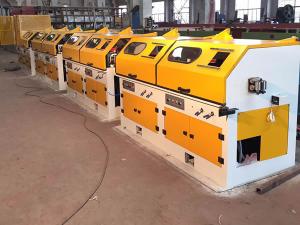

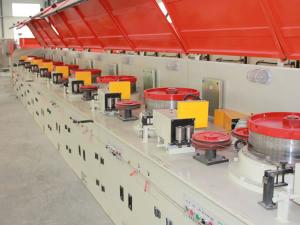

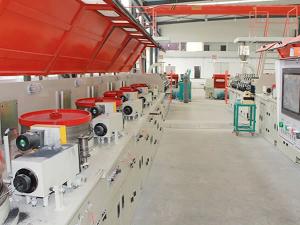

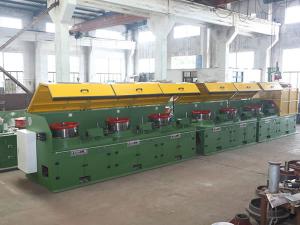

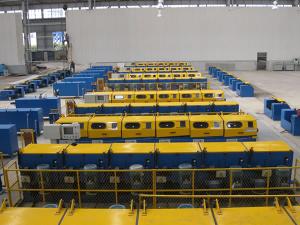

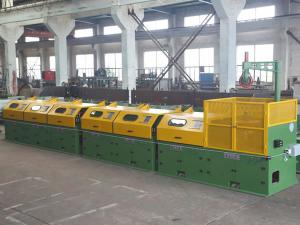

Straight Line Wire Drawing Machine

Metal Wire Drawing Machinery, Tyre Bead Wire Processing Machine, Drawing Equipment for Welding Wire, Copper Wire Drawing Machine

Straight-line wire drawing machine is appropriate for processing high, medium, or low carbon steel wires, stainless steel wires, bead wire, steel cord, flux cored shielded wire, steel cutting wheel, copper wire and aluminum welding wire, etc. The max allowable wire diameter for this metal wire making equipment is up to 14mm, and the min diameter of finished wire reaches 0.1mm.

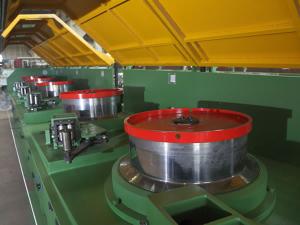

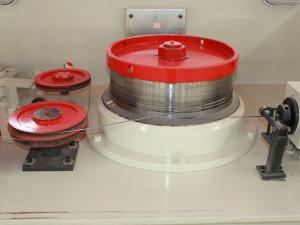

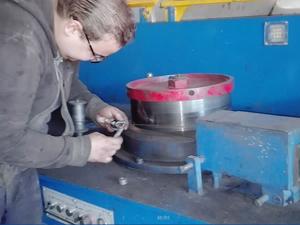

Generally, a straight line drawing equipment is composed of reel, motor, gearbox (optional), belt, mold box, and control system. It boasts a fully-automatic and highly-efficient metal wire manufacturing process.

Known as an experienced China metal wire manufacturing equipment supplier, Wanyi is committed to meeting the diversified requirements of users operating in different markets. We offer clients customization service, and users can choose different specifications of reel, winding, or unwinding machine they need.

Technical Parameters
Reel diameter (mm) Drawing times Max feeding diameter (mm) Min discharged diameter (mm) Single-stage motor power (kw) Max speed (m/s) Noise dB (A)
φ400 6-12 4.2 0.75 11-15 20 < 82
Reel diameter (mm) Drawing times Max feeding diameter (mm) Min discharged diameter (mm) Single-stage motor power (kw) Max speed (m/s) Noise dB (A)
φ500 6-12 5.5 1 15-37 18 < 82
Reel diameter (mm) Drawing times Max feeding diameter (mm) Min discharged diameter (mm) Single-stage motor power (kw) Max speed (m/s) Noise dB (A)
φ600 6-12 6.5 1.3 22-45 16 < 82
Reel diameter (mm) Drawing times Max feeding diameter (mm) Min discharged diameter (mm) Single-stage motor power (kw) Max speed (m/s) Noise dB (A)
φ700 4-9 8 2.4 45-75 12 < 85
Reel diameter (mm) Drawing times Max feeding diameter (mm) Min discharged diameter (mm) Single-stage motor power (kw) Max speed (m/s) Noise dB (A)
φ800 4-9 10 2.8 55-90 10 < 85
Reel diameter (mm) Drawing times Max feeding diameter (mm) Min discharged diameter (mm) Single-stage motor power (kw) Max speed (m/s) Noise dB (A)
φ900 4-9 14 3.5 75-110 8 < 85
