High Carbon Steel Wire Drawing Annealing Line

Overview
As an expert China steel wire producing equipment manufacturer, Wanyi is specialized in offering users one-stop steel wire processing solutions. Machines and production lines are customizable according to clients' requirements.

Our carbon steel wire production line is designed for the production of carbon steel, spring wire, steel wire for making nails, steel wires for construction, fence, black iron wire, and wire mesh, etc. It is distinguished for high automation, no pollution, easy operation, and convenient maintenance.

Techniques Employed
a. Pretreatment: removing the oxide on steel wire surface with derusting devices
b. Rough drawing: draw the steel wires into thin wires
c. Annealing: weakening the steel wires' strength
d. Fine drawing: draw the wires to the desired diameter or weight
1. High Carbon Steel Wire Production Line

Production Process
a. Wire unwinding → pretreatment → straight-line rough wire drawing → wire winding machine
b. Annealing
c. Wire unwinding → fine drawing (straight-line or water-tank wire drawing machine) → wire winding machine
d. Annealing
e. Wire unwinding machine with FX wheel → water tank type wire drawing machine → tension rack → wire winding machine with SG wheel

Main Equipment

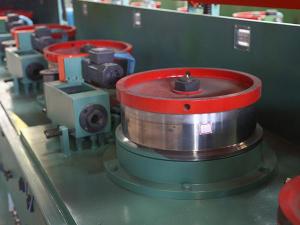

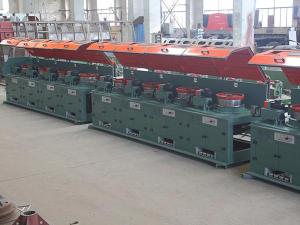

a. Straight-Line Wire Drawing Machine
ŸThe machine frame is welded from structural steel and steel plates
ŸReel is made from ZG270-500 and coated with carbon tungsten powder. Surface hardness: >HRC60; finish: 1.6Ra; service life: > 2 years
ŸCooling: narrow-slit type water cooling inside the reel; forced slot type annular air cooling outside the reel
ŸMold box is a welded part and comes with 2 cavities separately for lubrication powder and cooling water (direct water-cooled). Mixing device is available in the lubrication cavity.
ŸTransmission is done by V-belt and gearbox
ŸTension is adjusted by rollers pneumatically. The sensor adopts non-contact angular displacement. Mold is compensated automatically after it is worn.
ŸAC variable frequency control is employed for the electrical control system, which adopts inverter from Siemens or Inovance
ŸThe system adopts PLC control from Siemens or Mitsubishi
ŸThe touch screen is from Taiwan, and low-pressure electrical elements are from well-known brands in China
ŸEach machine is designed with the operations of start, stop, emergency stop, etc. Users can set the speed, wire diameter, and check the working speed and error through the touch screen. The console is set with the buttons of start, stop, emergency stop, accelerate, decelerate, and error indication

Technical Parameters
Reel diameter (mm) Drawing times Max feeding wire diameter (mm) Min discharging diameter (mm) Single-stage motor power (kw) Max speed (m/s) Noise dB(A)
φ400 6-12 4.2 0.75 11-15 20 < 82
φ500 6-12 5.5 1 15-37 18 < 82
φ600 6-12 6.5 1.3 22-45 16 < 82
φ700 4-9 8 2.4 45-75 12 < 85
φ800 4-9 10 2.8 55-90 10 < 85
φ900 4-9 14 3.5 75-110 8 < 85

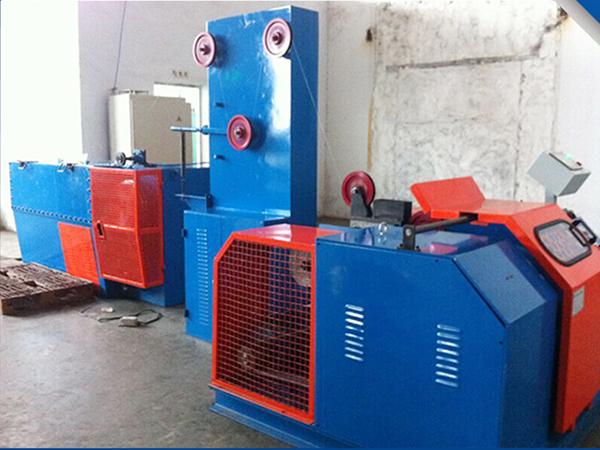

b. Water tank Type Drawing Machine
The frame is welded from structural steel, and water tank is welded from stainless steel
The flappable tank is made from steel plate; flip force: <200N
Reel material: 45 steel; coated with carbon tungsten; surface hardness: >HRC60; finish: 0.4Ra; service life: over 2 years
During drawing the steel wires are kept straightened and won't get broken easily; mold is stored in angle-adjustable rack
Reel and mold cooling: self-circulated coolant
Transmission: timing belt; with no oil leakage, and low noise
Mold is stored in angle-adjustable rack for the convenience of adjusting diameter and reel
Given quenching treatment, hardness of all of the winding wheels is over HRC50
Bearings of the main shaft are from NSK; motor is inverter type
AC variable frequency speed control; inverter from Siemens or Inovance

Technical Parameters
Model LT25/218 LT21/275 LT23-25/288 LT23/318 LT17-21/360
Drawing material high/medium/low carbon steel wire and steel cutting wire high/medium/low carbon steel wire high/medium/low carbon steel wire and steel cutting wire high/medium/low carbon steel wire high/medium/low carbon steel wire
Drawing times 25 21 23-25 23 17-21
Machine structure flappable type; 6 wheel groups flappable type; 4 wheel groups flappable type; 4 wheel groups flappable type; 4 wheel groups flappable type; 4 wheel groups
Max feeding wire diameter (mm) 1 1.4 1 2 3
Min discharging diameter (mm) 0.1-0.12 0.15 0.1-0.12 0.15 0.5
Average compression rate % 13.5 15 13.5-14 14.6 14-15
Max speed (m/s) 15 20 15 20 9
Motor power (kw) 15-18.5 22 15-18.5 30 55
Speed control AC variable frequency;
Stepless speed regulation
AC variable frequency;
Stepless speed regulation
AC variable frequency;
Stepless speed regulation
AC variable frequency;
Stepless speed regulation
AC variable frequency;
Stepless speed regulation
Control system PLC control PLC control PLC control PLC control
